BATCH COUNTER


Features:

  • Operating, economic model
  • Control output RELAY / Buzzer
  • The new version updated 6 + 4 digits display
  • Industrial level of EMC test & higher reliability
  • 2 Set Point
  • Auto Reset

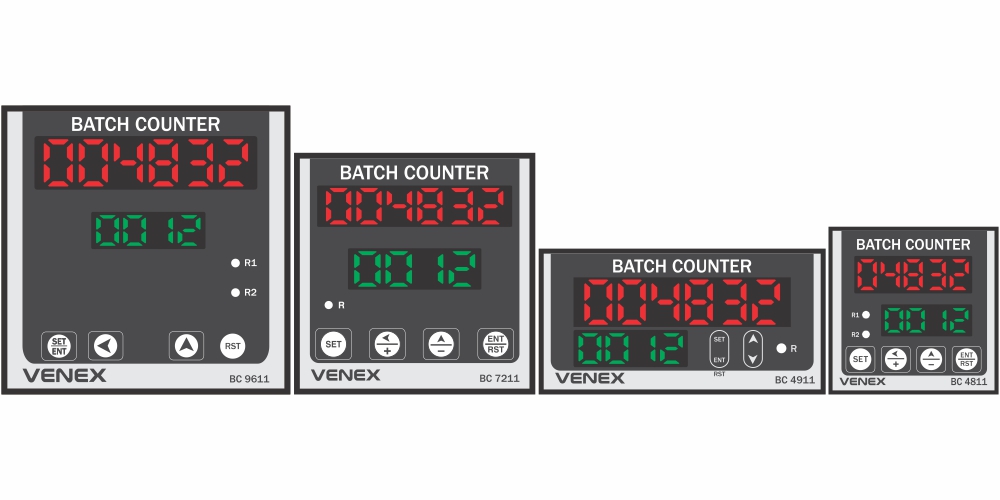

Model

BC 9611

BC 7211

BC 4911

BC 4811

Frame

96 x 96

72 x 72

48 x 96

48 x 48

Panel

92 x 92

68 x 68

44 x 92

44 x 44

Display

6 Digit 0.56” RED

4 Digit 0.39” RED

6 Digit 0.56” RED

4 Digit 0.39” RED

6 Digit 0.56” RED

4 Digit 0.39” RED

5 Digit 0.36” RED

4 Digit 0.28” RED



Specifications:

Set Point

  1 Set & 2 Set Point (Configurable)

Range Setting

999999 Count

Input

NPN / PNP Proxy / Micro switch / Limit Switch (Configurable)

Control Output

1CO + Buzzer OR SSR + Buzzer (Factory Set)

Relay Rating

1CO, 5 Amp. 230 Volt AC

SSR / Buzzer

12 V DC Approximately

Supply Voltage

230v AC, ±10%, 50Hz

Reset Facility

Auto Reset / By Front Keypad & Back Reset

Memory Retention

Memory retention for power failure

Enclosure Material

Polycarbonate + ABS Plastic

Operating Temp.

0°C 55°C

Relative Humidity

Upto 95% RH Non Condensing
