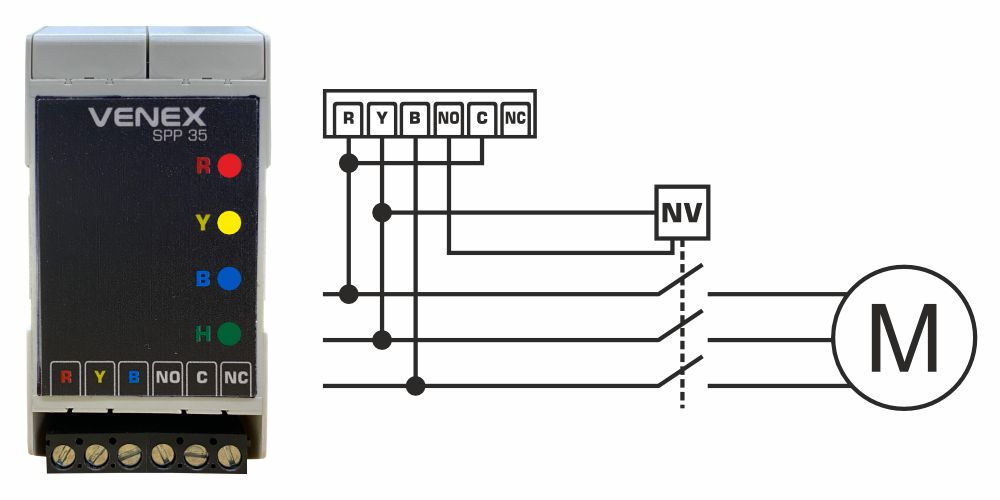

SPP 35

Related Products

SPP 35


Model No.
SPP 35



PROTECTION
Phase Asymmetry
Phase Sequence
Phase Loss



FEATURES
Compact Size
LED Indicate For Healthy / Fault Status
Self Powered
High Precision & Accuracy



APPLICATIONS
Electrical Control Panel
Submersible Pump
Road Construction Panel
MCC Panel
Industrial Chiller and HVAC System
D. G. Set



ENVIRONMENTAL
Working Temperature 0ºC ~ 55ºC
Storage Temperature 0ºC ~ 55ºC
Relative Humidity 95% RH Non-Condensing
Warm Up Time 5 Minutes



PHYSICAL
Mounting Type Din Rail Mount
Size (H X W X D (mm)) 75 X 35 X 87.3 mm
Material ABS



SPECIFICATION
System 30 - 3W
Supply Voltage 154 to 400 VAC (L-L)
Phase Loss <154 VAC (L-L)
Phase Asymmetry 40 VAC (L-L)
Hysteresis 8 V
Reset Auto Reset On Removal Of Fault Condition
Output

1 C/O, 10 A 250 VAC

10 A, 28 VDC (Resistive Load)
Trip Accuracy ±10% V
Response Time 200msec Max
