Single Display Temperature Controller

Features :

  • Easy Operation economic model
  • Control output RELAY / SSR
  • The new version updated 4 digits display
  • Industrial level of EMC test & higher reliability

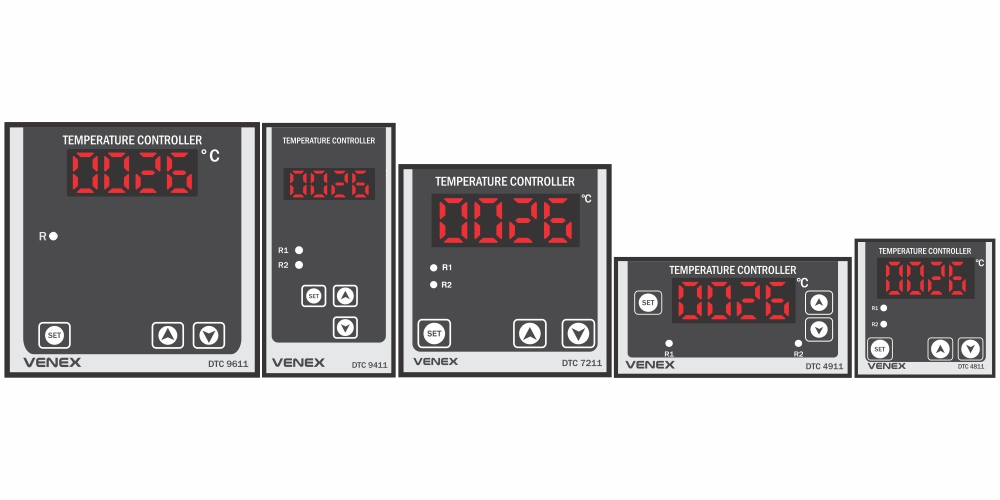

Model

DTC 9611

DTC 4811

DTC 4911

DTC 7211

DTC 9411

Frame

96 x 96

48 x 48

48 x 96

72 x 72

96 x 48

Panel

92 x 92

44 x 44

44 x 92

68 x 68

92 x 44

Display

4 Digit 0.56” RED

4 Digit 0.39” RED

4 Digit 0.56” RED

4 Digit 0.56” RED

4 Digit 0.39” RED

SPECIFICATIONS





Input

Sensor

J &K OR RTD & RTD.1 2W/3W (Configurable) (Also available in R/S/T/N/PT 1000)



Range

J(0°C to 400°C & 0°C to (600°C, K(0°C to 1200°C), PT-100 2W/3W(0°C to 400°C, - 50.0°C to 200.0°C)

Output

Control Output

RELAY + SSR



Capacity

1CO, 7 Amp, 230 Volt AC



SSR

12 V DC Approximately

SPECIFICATIONS







Supply Voltage

230v AC, ±10%, 50Hz



Set Point

1 Set Point



Control Mode

Time Proportional / ON-OFF (Configurable)



Operating Mode

HEAT OR COOL Mode (Factory Set)



Accuracy

±1% of FSD



Enclosure Material

Polycarbonate + ABS Plastic



Operating Temperature

0°C - 55°C



Relative Humidity

Upto 95% RH Non Condensing

Note :- Sensor Type R, S, T, E, B Available
