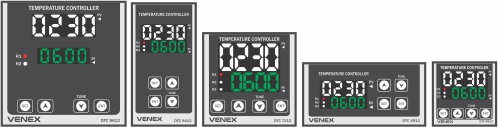

Double Display Pid Temperature Controller

Related Products

Double Display Pid Temperature Controller

Features:

  • Heat only or (heat & cool) strategy
  • High visibility display
  • Industrial level of EMC test & higher reliability
  • PID tuning Easy Set-up Operation



    Model

    DTC 9612

    DTC 9412

    DTC 7212

    DTC 4912

    DTC 4812

    Frame

    96 x 96

    96 x 48

    72 x 72

    98 x 96

    48 x 48

    Panel

    92 x 92

    92 x 44

    68 x 68

    44 x 92

    44 x 44

    Display

    4 Digit 0.56” RED

    4 Digit 0.39” GREEN

    4 Digit 0.39” RED

    4 Digit 0.29” GREEN

    4 Digit 0.56” RED

    4 Digit 0.39” GREEN

    4 Digit 0.56” RED

    4 Digit 0.39” GREEN

    4 Digit 0.39” RED

    4 Digit 0.29” GREEN

Specifications:

Sensor

    J & K OR RTD & RTD.1 2W/3W (Configurable)            (Also available in R/S/T/N/PT 1000)

Range

 J(0 to 400 & 0 to (600 ), K(0 to 1200 ), PT-100     2W/3W((0 to 400 , - 50.0 to 200.0 )

Control Output

 RELAY + RELAY + SSR (Relay + SSR (Heat) +   Relay (Cool))

Capacity

 1CO + 1CO, 7 Amp, 230 Volt AC

SSR

12 V DC Approximately

Supply Voltage

 230v AC, ±10%, 50Hz

Set Point

 2 Set Point

Control Mode

 Time Proportional / ON-OFF / PID (Configurable)

Operating Mode

 HEAT / COOL Mode Selectable

Accuracy

 ±1% of FSD

Enclosure Material

 Polycarbonate + ABS Plastic

Operating Temperature

 0°C - 55°C

Relative Humidity

 Upto 95% RH Non Condensing

Note :- Sensor Type R, S, T, E, B Available
