Features:

• Back side START/STOP terminal available
• Trigger Start / Proxy Start / Enable / Power ON
• No. of cycle & No. of channel selection
• Control output RELAY / SSR as per requirement
• Industrial level of EMC test & higher reliability
• 16 x 2 Blue / white LCD screen
• Easy operating
• Cascading facility available

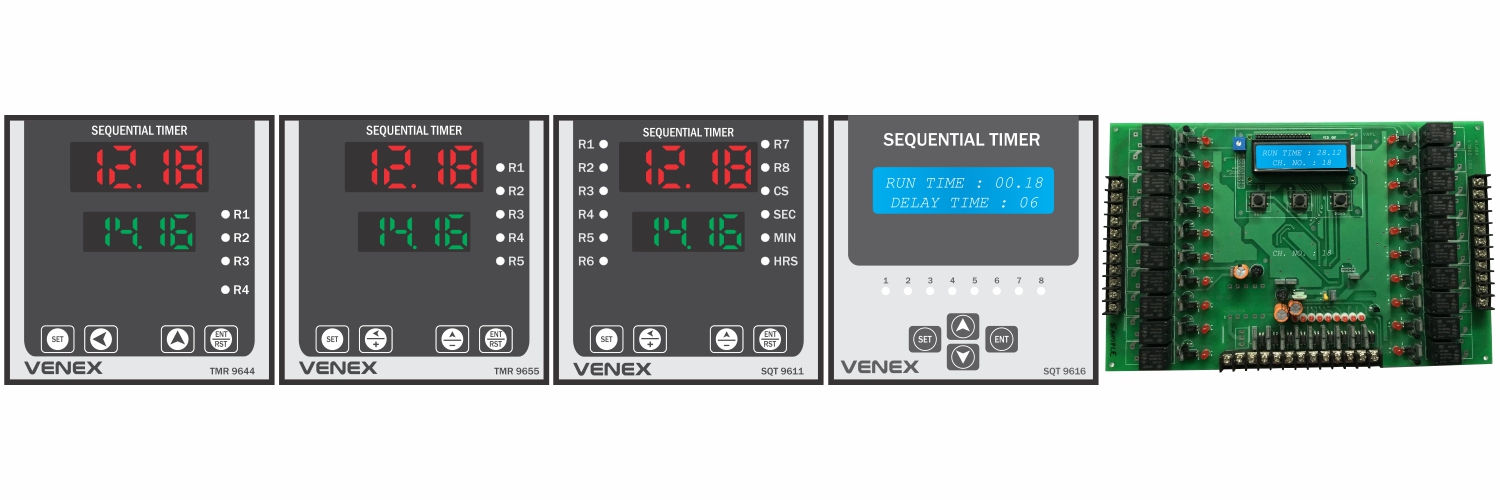

  MODEL : TMR 9644 (4 Chanel Sequential Timer)
  SETTING	Set Point	4 Set Point
  	Range Setting	99.99 Sec. / 999.9 Sec. / 99.59 Min. / 999.9 Min. / 99.59 Hrs / 999.9 Hrs. (Configurable)
  OUTPUT	Control Output	4 Relay / 1CO 7 Amp. @ (resistive load) 230V AC to 12V max 20mA DC SSR Output (Any one Factory Set)
  MODEL : TMR 9655 (5 Chanel Sequential Timer)
  SETTING	Set Point	5 Set Point
  	Range Setting	99.99 Sec. / 999.9 Sec. / 99.59 Min. / 999.9 Min. / 99.59 Hrs / 999.9 Hrs. (Configurable)
  OUTPUT	Control Output	5 Relay / 1CO 7 Amp. @ (resistive load) 230V AC to 12V max 20mA DC SSR Output (Any one Factory Set)
  MODEL : SQT 9611 (8 Chanel Sequential Timer)
  SETTING	Set Point	8 Set Point
  	Range Setting	99.99 Sec. / 999.9 Sec. / 99.59 Min. / 999.9 Min. / 99.59 Hrs / 999.9 Hrs. (Configurable)
  OUTPUT	Control Output	8 Relay/ 1CO 7 Amp. @ (resistive load) 230V AC or 12V max 20mA DC SSR Output (Any one Factory Set)
  	Cascading	Cascading facility available in SQT-9611 (8 Relay) Sequential timer up to 1 + 3 parallel
  MODEL: SQT 9616 Size: 180 x 280 mm CH. NO. : 18 CH. NO. : 18 RUN TIME : 28.12 (8 to 16 Chanel Sequential Timer)
  SEETING	Set Point	16 Set Point (8 to 16 Available)
  	Range Setting	99.99 Sec. / 999.9 Sec. / 99.59 Min. / 999.9 Min. / 99.59 Hrs / 999.9 Hrs. (Configurable)
  OUTPUT	Control Output	16 Relay/ 1CO 5 Amp. @ (resistive load) 230V AC or 12V max 20mA DC SSR Output (Any one Factory Set)
  INPUT	Control Input	4 Pulse (Micro Switch / Proximity) Input Available (Back Start / Stop)
  	Cascading	1 + 3 parallal
  SEQUENTIAL CARD (10 to 20 Chanel Sequential Timer)
  SEETING	Set Point	20 Set Point
  	Range Setting	99.99 Sec. / 999.9 Sec. / 99.59 Min. / 999.9 Min. / 99.59 Hrs / 999.9 Hrs. (Configurable)
  OUTPUT	Control Output	20 Relay/ 1CO 7 Amp. @ (resistive load) 230V AC or 12V max 20mA DC SSR Output (Any one Factory Set
  INPUT	Control Input	9 Pulse (Micro Switch / Proximity) Input Available  (Any one Factory Set)
