SINGLE DISPLAY UNIVERSAL INPUT TEMPERATURE CONTROLLER

Features:

  • Easy Operation economic model
  • Control output RELAY / SSR
  •  The new version updated 4 digits display
  •  Industrial level of EMC test & higher reliability
  • J/K/RTD selectable

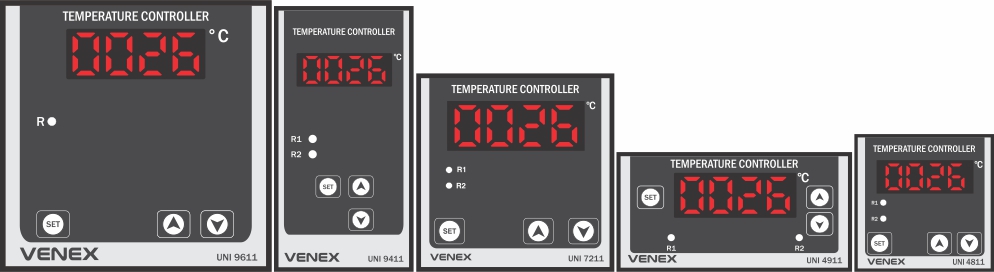

Model

UNI 9611

UNI 9411

UNI 7211

UNI 4911

UNI 4811

Frame

96 x 96

96 x 48

72 x 72

48 x 96

48 x 48

Panel

92 x 92

92 x 44

68 x 68

44 x 92

44 x 44

Display

4 Digit 0.56” RED

4 Digit 0.39” RED

4 Digit 0.56” RED

4 Digit 0.56” RED

4 Digit 0.39” RED




Specifications:

Sensor

J & K OR RTD & RTD.1 2W/3W (Configurable)     (Also available in R/S/T/N/PT 1000)

Range

J(0°C to 400°C & 0°C to (600°C , K(0°C to 1200°C), PT-100 2W/3W(0°C to 400°C , - 50.0°C to 200.0°C )

Control Output

RELAY + SSR

Capacity

1CO, 7 Amp, 230 Volt AC

SSR

12 V DC Approximately

Supply Voltage

230v AC, ±10%, 50Hz

Set Point

1 Set Point

Control Mode

Time Proportional / ON-OFF (Configurable)

Operating Mode

HEAT OR COOL Mode (Factory Set)

Accuracy

±1% of FSD

Enclosure Material

Polycarbonate + ABS Plastic

Operating Temperature

0°C - 55°C

Relative Humidity

Upto 95% RH Non Condensing
