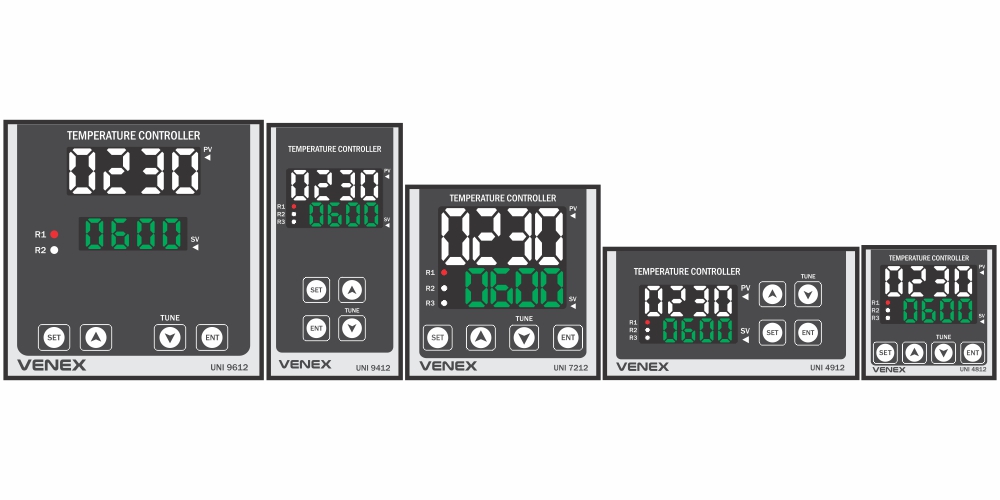

UNIVERSAL INPUT TEMPERATURE CONTROLLER

Related Products

UNIVERSAL INPUT TEMPERATURE CONTROLLER

Features:

  • Universal Input J / K or PT-100
  • Control output RELAY + RELAY + SSR
  • The new version updated 4 digits display
  • Industrial level of EMC test & higher reliability



Model

UNI 9612

UNI 4812

UNI 4912

UNI 7212

UNI 9412

Frame

96 x 96

48 x 48

48 x 96

72 x 72

96 x 48

Panel

92 x 92

44 x 44

44 x 92

68 x 68

92 x 44

Display

4 Digit 0.56” RED

 4 Digit 0.39” GREEN

4 Digit 0.39” RED

 4 Digit 0.29” GREEN

4 Digit 0.56” RED

 4 Digit 0.39” GREEN

4 Digit 0.56” RED

 4 Digit 0.39” GREEN

4 Digit 0.39” RED

4 Digit 0.29” GREEN






Specification:

INPUT

Sensor

J / K OR RTD & RTD.1 2W/3W (Configurable)


Range

J(0°C to 400°C & 0°C to (600°C) , K(0°C to 1200°C ), PT-100 2W/3W(0°C to 400°C , - 50.0°C to 200.0°C )
OUTPUT

Control Output

RELAY + RELAY + SSR


Capacity

1CO + 1CO, 7 Amp, 230 Volt AC


SSR

12 V DC Approximately
SPECIFICATIONS

Supply Voltage

230v AC, ±10%, 50Hz


Set Point

2 Set Point (Heat or Cool)


Control Mode

Time Proportional / ON-OFF / PID (Configurable)


Operating Mode

HEAT / COOL Mode Selectable


Accuracy

±1% of FSD


Enclosure Material

Polycarbonate + ABS Plastic


Operating Temperature

0°C - 55°C


Relative Humidity

Upto 95% RH Non Condensing
