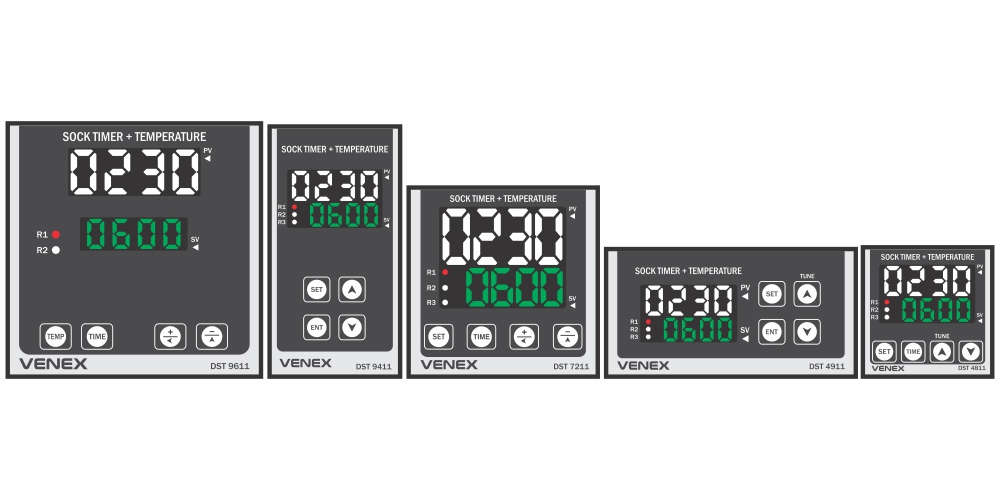

SOCK TIMER + TEMPERATURE CONTROLLER

Related Products

SOCK TIMER + TEMPERATURE CONTROLLER

Features:

  • Optional input “TC or RTD”
  • Control output RELAY / SSR
  • Easy operation Model loop free - setting alarm function
  • Industrial level of EMC test & higher reliability
  • Front time key to set time



Model

DST 9611

DST 9411

DST 7211

DST 4911

 DST 4811

Frame

96 x 96

96 x 48

72 x 72

48 x 96

 48 x 48

Panel

92 x 92

92 x 44

68 x 68

44 x 92

 44 x 44

Display

4 Digit 0.56” RED

 4 Digit 0.39” GREEN

4 Digit 0.39” RED

4 Digit 0.39” GREEN

4 Digit 0.56” RED

 4 Digit 0.39” GREEN

4 Digit 0.56” RED

 4 Digit 0.28” GREEN

4 Digit 0.39” RED

 4 Digit 0.28” GREEN




Specifications:

INPUT

Sensor

J & K OR RTD & RTD.1 2W/3W (Configurable)


Range

 J(0°C to 400°C & 0°C to (600°C , K(0°C to 1200°C),   PT-100 2W/3W(0°C to 400°C , - 50.0°C to 200.0°C)
OUTPUT

Control Output

RELAY + SSR (RELAY + RELAY)


Capacity

1CO, 7 Amp. 230 Volt AC


SSR

12 V DC Approximately
SPECIFICATIONS

Supply Voltage

230v AC, ±10%, 50Hz


Time Range

9999 Second / Minute / Hour


Set Point

1 Set Point


Control Mode

PID / Time Proportional / ON-OFF (Configurable)


Operating Mode

Sock + Temperature


Accuracy

±1% of FSD


Enclosure Material

Polycarbonate + ABS Plastic


Operating Temperature

0°C - 55°C


Relative Humidity

Upto 95% RH Non Condensing
